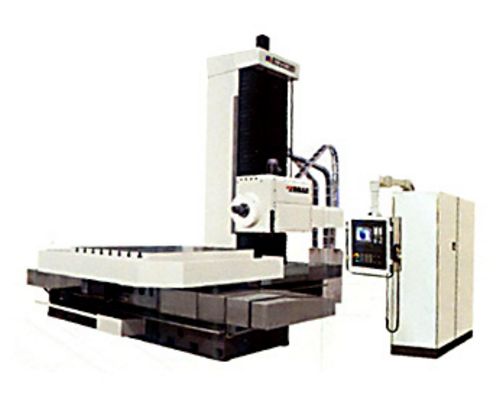

China Czech TH6813 CNC Ram Type Boring & Milling Machine

NBHSY114:

New, China Czech TH6813 CNC Ram Type Boring & Milling Machine

  • Ram Size 480x480 mm
  • Spindle Diameter 130 mm
  • Table Size 2000x2000 mm
  • Max Load on Table 10000 kg
  • Worktable T-Slot 28 mm X 9
  • Spindle Taper ISO7:24 No.50
  • Spindle Speed 10-1500 RPM
  • Max Torque 2500 Nm
  • Distance Between Spindle Axis And Table Top 260-2260 mm
  • Min Distance Between Spindle End And Table 1033 mm
  • Table X Traverse 2000 mm (Opt. 2500, 3000)
  • Headstock Y Travel 2000 mm (Opt. 2500)
  • Column Z Travel 2000 mm (Opt. 3000)
  • Spindle W Travel 700 mm
  • Ram Z1 Travel 700 mm
  • Rotation B of Rotary Table 360 Deg
  • Traverse Speed: X / Y / Z 1-6000 mm/min, Z1 / W 1-3000 mm/min, B 0-1 r/min
  • Rapid Traverse: X / Z 9 m/min, Y 6 m/min, Z1 / W 3 m/min, B 1 r/min
  • Tool Magazine Capacity 40
  • Power of Main Motor 37 kW (51 kW for 30 min continuous)
  • AC Servomotors Rated Torque: X/B 38 Nm, Y/Z/W 55 Nm
  • Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
  • Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
  • Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
  • CNC System Siemens 840D (Opt. Fanuc 18i)
  • Total Power 70 kVA
  • Overall Dimensions: 7,600 mm (L) x 6,300 mm (W) x 5,300 mm (H)
  • Weight approximately 41 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
