China Czech THQP6513 CNC Horizontal Boring & Milling Machine

NBHSY106:

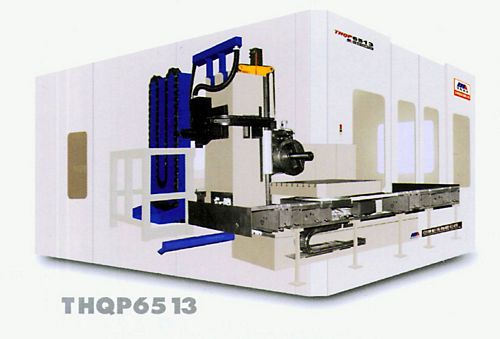

New, China Czech THQP6513 CNC Horizontal Boring & Milling Machine

  • China Czech CNC Hor. Boring & Milling Machine
  • Model THQP6513
  • Spindle Diameter 130 mm
  • Table Size 1000x1250 mm (Opt. 1250x1250, 1250x1400)
  • Max Load on Table 5000 kg
  • Worktable T-Slot 22 mm X 7
  • Spindle Taper ISO7:24 No.50
  • Spindle Speed 10-2000 RPM
  • Max Torque 1300 Nm
  • Distance Between Spindle Axis And Table Top 30-1530 mm
  • Min Distance Between Spindle End And Table 487 mm
  • Table X Traverse 2000 mm (Opt. 2500, 3000)
  • Headstock Y Travel 1500 mm
  • Column Z Travel 1200 mm (Opt. 2000)
  • Spindle W Travel 550 mm
  • Facing Plate Slide U Travel 140 mm
  • Rotation B of Rotary Table 360 Deg
  • Traverse Speed (mm/min): X / Y / Z 1-6000, W 1-2000, U 1-1000, B 0-1.5 r/min
  • Rapid Traverse: X / Y / Z 9 m/min, W / U 3 m/min, B 2.5 r/min
  • Tool Magazine Capacity 40
  • Power of Main Motor 17 kW (22.5 kW for 30 min continuous)
  • Positioning Accuracy X / Y / Z: +/- 0.008 mm Over Full Length (Opt. +/- 0.005)
  • Positioning Accuracy B (4 X 90 Deg): +/- 7.5" (Opt. +/- 2")
  • Repeatability X / Y / Z: +/- 0.005 mm (Opt. +/- 0.0025), B (4 X 90 Deg): +/- 2"
  • CNC System Siemens 840D (Opt. Fanuc 18i)
  • Total Power 50 kVA
  • Overall Dimensions: 5,555 mm (L) x 4,155 mm (W) x 4,078 mm (H)
  • Weight approximately 21 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
