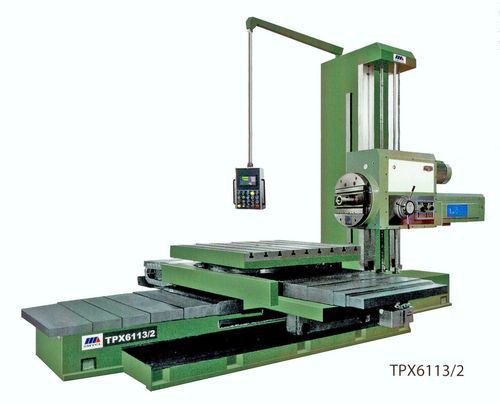

China TPX6113/2 Horizontal Boring & Milling Machine

NBHSY005:

New, China TPX6113/2 Horizontal Boring & Milling Machine

  • Spindle diameter 130mm
  • Work table size 1800 x 1600mm
  • Spindle taper Metric 80
  • Max spindle torque 3136 Nm
  • Max spindle thrust 31360 N
  • Spindle speeds 4 - 800 r/min, off 24
  • Max torque of facing head 4900 Nm
  • Facing head diameter 750mm
  • Facing head speed 2.5 - 125 r/min, off 18
  • T-slot 28mm; No. of T-slot 10
  • Max load on table 10000 kg
  • X axis travel 1600mm
  • Y-axis travel 1400mm
  • Z-axis travel 2000mm (without tailstock)
  • Min distance between spindle center and work table 0mm
  • Slide travel of facing plate (U-axis) 250mm
  • Spindle travel (W-axis) 900mm
  • B-axis worktable rotary 360°
  • Rapid travel (X/Y/Z/W) 2500 mm/min
  • Feed rates 0.05 - 8 / 0.01 - 2 mm/rev
  • Power of main motor 15 kW
  • Measurement system reading precision (X/Y/Z) 0.005mm (Z optional)
  • B-axis measurement system reading precision 0.001° (B optional)
  • DRO for axis X and Y
  • Metric system
  • Overall Dimensions: 7,030 mm (L) x 4,665 mm (W) x 3,800 mm (H)
  • Weight approximately 29 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
