Sunshine Innovation Sams Horizontal Borer

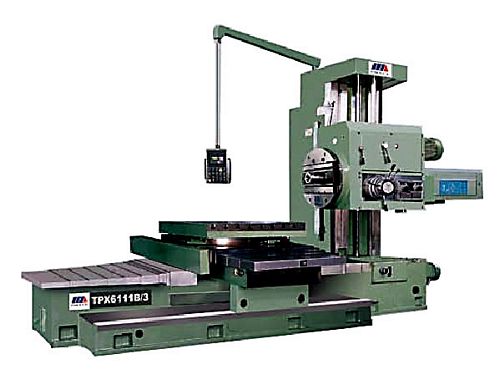

China TPX6111B/3 Horizontal Boring & Milling Machine

NBHSY003:

New, China TPX6111B/3 Horizontal Boring & Milling Machine

  • China Horizontal Boring & Milling Machine
  • Model TPX6111B/3
  • Spindle diameter 110mm
  • Work table size 1250 x 1100mm
  • Spindle taper Morse No. 6
  • Max spindle torque 1225 N.m
  • Max facing head torque 1960 N.m
  • Max spindle thrust 12250 N
  • Spindle travel (W-axis) 600mm
  • Spindle speeds 8-1000 r/min, off 22
  • Slide travel of facing plate (U-axis) 180 mm
  • Max load on table 3000 kg
  • Distance between spindle axis and table surface 0-1200mm
  • Table travel transverse 1600mm
  • Table travel longitudinal 1400mm (without tailstock)
  • Transverse rapid for spindle, headstock, worktable 2500 mm/min
  • Range of spindle , headstock and table speeds per spindle revolution 0.04-6 / 0.01-1.88 mm/r
  • Power of main motor 7.5 kW
  • Overall Dimensions: 5,120 mm (L) x 3,380 mm (W) x 3,100 mm (H)
  • Weight approximately 18 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
