Zhongyang Sams Horizontal Borer


China TK6513B x 2 CNC Double Sided Boring Machine

NBHKM039:

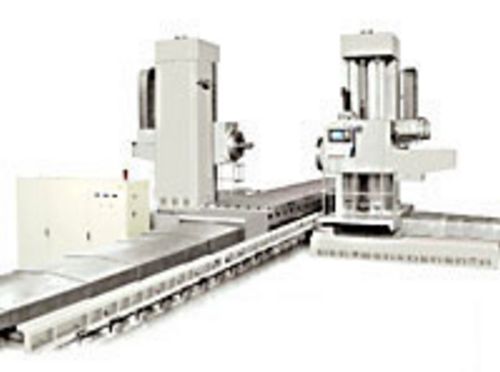

New, China TK6513B x 2 CNC Double Sided Boring Machine

  • Boring Spindle Diameter 130 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 7-1500 RPM
  • Power of Spindle Motor (rated/30min) 30/41kW
  • Max. Torque of Spindle 2865 N.m
  • Max. Spindle Thrust 20000 N
  • Table Size (L x W) 4000 x 1400 mm
  • Max. Load of Table 20000 kg
  • Transverse Travel of Table 4000 mm
  • Vertical Travel of Spindle Head 1600 mm
  • Longitudinal Travel of Table 1250 mm
  • Axial Travel of Spindle 900 mm
  • CNC System SIEMENS 840D
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.


Home | Horizontal Borer Listing | New Machinery Categories

We will source worldwide for machinery if we do not carry machinery to your required capacity.



Graffenstaden Horizontal Borer
Graffenstaden
Horizontal Boring Machine
Face Head Diameter 40"
Table 86" x 70"



Stavely-Kearns-Richards 6 inch Horizontal Borer
Stavely-Kearns-Richards
Travelling Horizontal Borer
Revolving Table 5' x 5'
Spindle 6" Dia.



Richards Type PRT3N Horizontal Borer
Richards PRT3N
Horizontal Borer
Table 5'x3'
Face Head 28"
Spindle 3.1/2" Dia
