Horizontal Borer

NBHKM038:

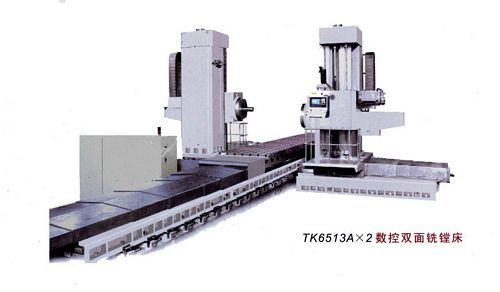

New, China TK6513A x 2 CNC Double Sided Boring Machine

China TK6513A x 2 Double Sided Boring Machine
Boring Spindle Dia. 130 mm
Spindle Taper ISO 50#
Spindle Speed 7-1500 RPM
Power of Spindle Motor 30/41kW
Max. Torque of Spindle 2865 N.m
Max. Spindle Thrust 20000 N
Speed of Facing Chuck 5 -125 RPM
Traverse of Facing Chuck Slide 300 mm
Table Size (L X W) 4000 x 1400
Max. Load of Table 20000 kg
Transverse Travel of Table 4000 mm
Vertical Travel of Spindle Head 1600 mm
Longitudinal Travel of Table 1250 mm
Axial Travel of Spindle 900 mm
CNC System SIEMENS 840D

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
