China TH6513C Horizontal Boring & Milling Machining Center

NBHKM037:

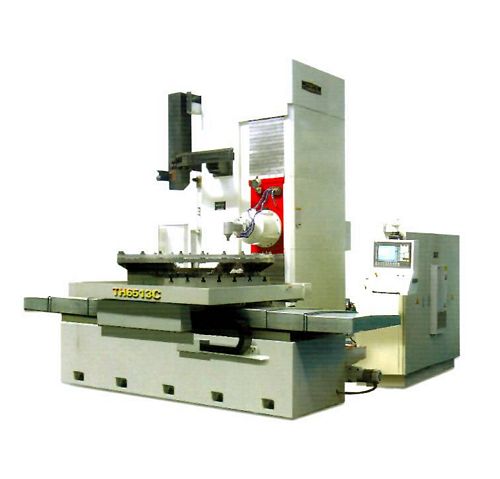

New, China TH6513C Horizontal Boring & Milling Machining Center

  • Spindle Dia. 130 mm
  • Spindle Taper ISO 50#
  • Spindle Speed Range 10-2500 RPM
  • Power of Spindle Motor 22/27.5 kW
  • Max. Torque of Boring Spindle 1300 N.m
  • Max. Spindle Thrust 15000 N
  • Table Size (L x W) 1600 x 1400 mm
  • Max. Load 8000 kg
  • Transverse Travel of Table 2000 mm
  • Vertical Travel of Spindle Head 1400 mm
  • Longitudinal Travel of Column 1200 mm
  • Axial Travel of Spindle 700 mm
  • Table Rotation 360 degrees
  • Feed Rate Range X,Y,Z,W 1-2000 mm/min    B: 0.006-2 RPM
  • ATC Capacity 40
  • CNC System SINUMERIK 840D (FANUC 18i)
  • Electric Capability 100 kVA
  • Overall Dimensions: 5,500 mm (L) x 5,200 mm (W) x 4,500 mm (H)
  • Weight approximately 36 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
