Zhongyang Sams Horizontal Borer

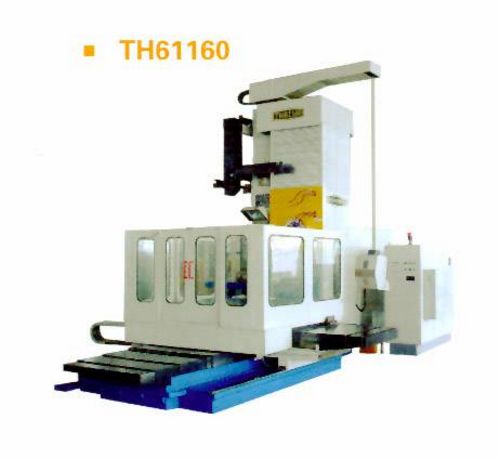

China TH61160 Horizontal Boring & Milling Machining Center

NBHKM036:

New, China TH61160 Horizontal Boring & Milling Machining Center

  • Table Size (L x W) 1800 x 1800 mm
  • Max. Load of Table 10000 kg
  • Spindle Diameter 130mm
  • Spindle Taper ISO 50#
  • Spindle Speed 6-2500 RPM
  • Power of Spindle Motor (Rated /30Min) 22/30 kW
  • Max. Torque of Spindle 2500 N.m
  • Max. Spindle Thrust 25000 N
  • Transverse Travel of Table 1800 mm
  • Vertical Travel of Spindle Head 1600 mm
  • Longitudinal Travel of Column 1900 mm
  • Axial Travel of Spindle 900 mm
  • Table Rotation 360 degrees
  • ATC Capacity 40
  • CNC System SIEMENS 840D (FANUC 18i)
  • Weight approximately 35 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
