China TK6513A CNC Horizontal Boring Machine

NBHKM024:

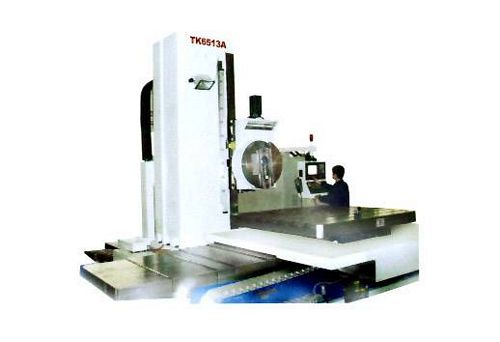

New, China TK6513A CNC Horizontal Boring Machine

  • Boring Spindle Dia. 130 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 7-1500 RPM
  • Power of Spindle Motor (Rated/30Min) 30/41 RPM
  • Max. Torque of Boring Spindle 2865 N.m
  • Max. Spindle Thrust 20000 N
  • Speed of Facing Chuck 5-125 RPM
  • Table Size(L x W) 1800 x 1600 mm
  • Max. Load of Table 10000 kg
  • Transverse Travel of Table 2500 mm
  • Vertical Travel of Spindle Head 1600 mm
  • Longitudinal Travel of Column 1250 mm
  • Axial Travel of Spindle 900 mm
  • Traverse of Facing Chuck Slide 300 mm
  • Table Rotation 360 Degrees
  • CNC System SIEMENS 840D (FANUC18i)
  • Weight approximately 35 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
