China TJK6516A/1 CNC Horizontal Boring Machine

NBHKM018:

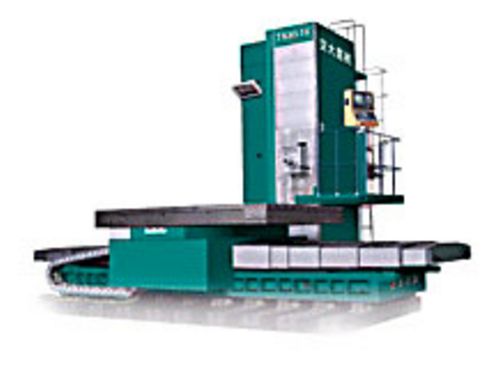

New, China TJK6516A/1 CNC Horizontal Boring Machine

  • China CNC Horizontal Boring Machine
  • Model TJK6516A/1
  • Boring Spindle Dia. 160 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 7-1500 RPM
  • Power of Spindle Motor(Rated/30Min) 37 RPM
  • Max. Torque of Boring Spindle 3500 N.m
  • Max. Spindle Thrust 30000 N
  • Speed of Facing Chuck 5-125 RPM
  • Table Size(L x W) 1800 x 1600 mm
  • Max. Load of Table 10000 kg
  • Transverse Travel of Table 2000 mm
  • Vertical Travel of Spindle Head 1600 mm
  • Longitudinal Travel of Column 1250 mm
  • Axial Travel of Spindle 900 mm
  • Traverse of Facing Chuck Slide 300 mm
  • Table Rotation 360 Degrees
  • CNC System FAGOR 8055M
  • Weight approximately 35 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
