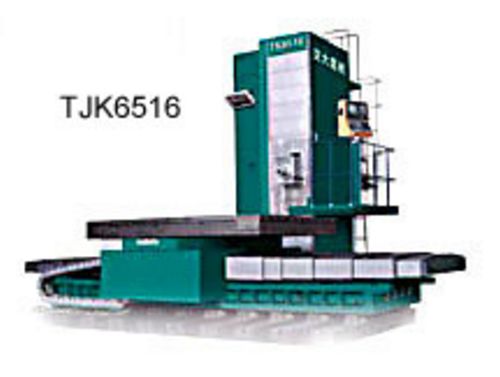

New, China TJK6516A CNC Horizontal Boring Machine
- Boring Spindle Dia. 160 mm
- Spindle Taper ISO 50#
- Spindle Speed 7-1500 RPM
- Power of Spindle Motor(Rated/30Min) 37 RPM
- Max. Torque of Boring Spindle 3500 N.m
- Max. Spindle Thrust 20000 N
- Speed of Facing Chuck 5-125 RPM
- Table Size(L X W) 2000 X 2000 mm
- Max. Load of Table 15000 kg
- Transverse Travel of Table 2000 mm
- Vertical Travel of Spindle Head 2000 mm
- Longitudinal Travel of Column 1500 mm
- Axial Travel of Spindle 900 mm
- Traverse of Facing Chuck Slide 300 mm
- Table Rotation 360 Degrees
- CNC System FAGOR 8055M
- Weight approximately 40 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
