China TK6111 Horizontal Boring Machine

NBHKM011:

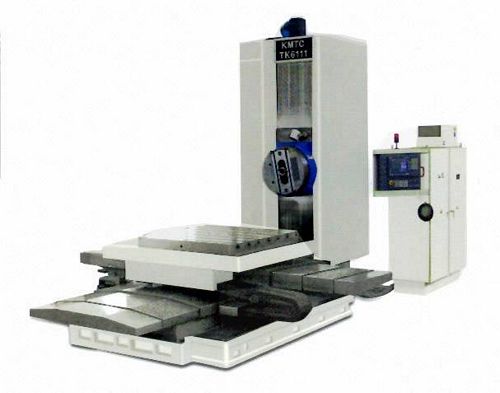

New, China TK6111 Horizontal Boring Machine

  • Boring Spindle Dia. 110 mm
  • Spindle Taper ISO 50#
  • Max. Spindle Torque 1600 N.m
  • Max. Spindle Thrust 15000 N
  • Spindle Speed 10-1500 RPM
  • Power of Spindle Motor (Rated/30Min) 17/22.5 kW
  • Speed of Facing Chuck 6-165 RPM
  • Table Size(L x W) 1400 x 1400 mm
  • Max. Load of Table 5000 kg
  • Transverse Travel of Table (X) 1700 mm
  • Vertical Travel of Spindle Head (Y) 1400 mm
  • Longitudinal Travel of Table (W) 1400 mm
  • Axial Travel of Spindle (Z) 600 mm
  • Table Rotation (B) 360 degrees
  • Overall Dimensions: 6,360 mm (L) x 3,916 mm (W) x 3,600 mm (H)
  • Weight approximately 25 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
