Zhongyang Sams Horizontal Borer

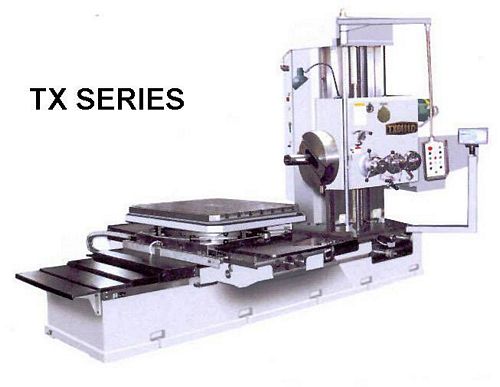

China TX6113C/2 Horizontal Boring Machine

NBHKM009:

New, China TX6113C/2 Horizontal Boring Machine

  • Spindle Diameter 130 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 6.6-755 RPM
  • Power of Main Drive Motor 11(15) kW
  • Max. Drilling Capacity of Spindle 80 mm
  • Max. Boring Capacity of Spindle 350 mm
  • Speed of Facing Chuck 4.4-165 RPM (14step)
  • Travel of Facing Chuck Slide 200 mm
  • Max. Boring Capacity of Facing Chuck 700 mm
  • Table Size (L x W) 1600 x 1400 mm
  • Max. Load of Table 10000 kg
  • Transverse Travel of Table (X) 2000 mm
  • Vertical Travel of Spindle Head (Y) 1600 mm
  • Longitudinal Travel of Table (Z) 2000 mm
  • Axial Travel of Spindle 900 mm
  • Feeds of Rates 0.04-6 mm/rev (12step)
  • DRO X,Y,Z,B
  • Overall Dimensions: 7,520 mm (L) x 4,400 mm (W) x 4,085 mm (H)
  • Weight approximately 33 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
