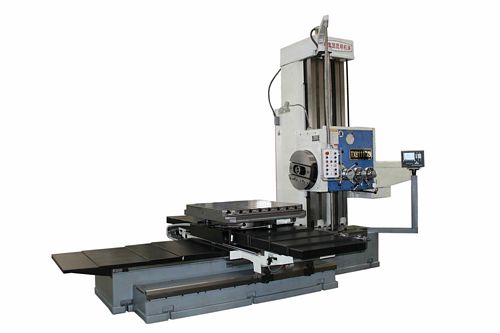

New, China TX6111C/3 DRO Boring & Milling Machine
- Spindle Diameter 110mm
- Table Sixe 1100mm x 1200mm
- Spindle Taper ISO 50#
- Min. Distance from Spindle Center to Table Surface 0mm
- Cross Travel of Table (X) 1600mm
- Radial Travel of Facing Head Slide (U) 170mm
- Vertical Travel of Spindle Head (Y) 1300mm
- Longitudinal Travel of Table (Z) 1400mm
- Axial Travel of Spindle (W) 600mm
- Spindle Speed 9-1000 RPM (18 steps)
- Speed of Facing Head 6-221 RPM (14 steps)
- Feed Capacity of Spindle Head and Table: (calculated by spindle/run) 0.04-6 mm/r (12 steps), (calculated by facing head/run) 0.06-9 mm/r (12 steps)
- Feed Capacity of Facing Head Slide: (calculated by facing head/run) 0.04-6 mm/r (12 steps)
- Max. Drilling Diameter of Spindle 65mm
- Max. Boring Diameter of Spindle 300mm
- Max. Boring Diameter of Facing Head 600mm
- Max. Torque of Spindle 1000 Nm
- Max. Thrust of Spindle 15000 N
- Max. Torque of Facing Head 1500 Nm
- Max. Load of Table 4000 kg
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
