China TX6111C/2 DRO Boring & Milling Machine

NBHKM005:

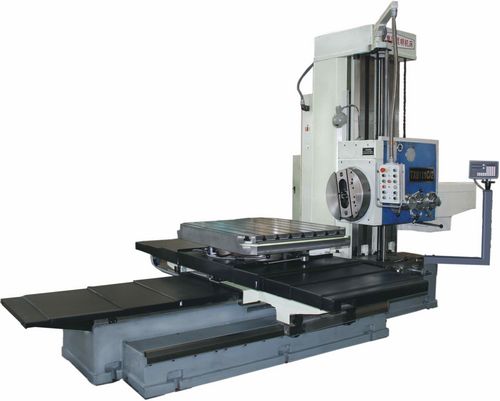

New, China TX6111C/2 DRO Boring & Milling Machine

  • China TX6111C/2 Boring & Milling Machine
  • Spindle Diameter 110mm
  • Table Sixe 1100mm x 1200mm
  • Spindle Taper ISO 50#
  • Min. Distance from Spindle Center to Table Surface 0mm
  • Cross Travel of Table (X) 1300mm
  • Radial Travel of Facing Head Slide (U) 170mm
  • Vertical Travel of Spindle Head (Y) 1100mm
  • Longitudinal Travel of Table (Z) 1400mm
  • Axial Travel of Spindle (W) 600mm
  • Spindle Speed 9-1000 RPM (18 steps)
  • Speed of Facing Head 6-221 RPM (14 steps)
  • Feed Capacity of Spindle Head and Table: (calculated by spindle/run) 0.04-6 mm/r (12 steps), (calculated by facing head/run) 0.06-9 mm/r (12 steps)
  • Feed Capacity of Facing Head Slide: (calculated by facing head/run) 0.04-6 mm/r (12 steps)
  • Max. Drilling Diameter of Spindle 65mm
  • Max. Boring Diameter of Spindle 300mm
  • Max. Boring Diameter of Facing Head 600mm
  • Max. Torque of Spindle 1000 Nm
  • Max. Thrust of Spindle 15000 N
  • Max. Torque of Facing Head 1500 Nm
  • Max. Load of Table 4000 kg
  • Main Motor 7.5 kw
  • Total Power 30 kva
  • Overall Dimensions: 4,755 mm (L) x 2,400 mm (W) x 2,950 mm (H)
  • Weight approximately 16 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
