Zhongyang Sams Horizontal Borer


China TX6111T Horizontal Boring Machine

NBHKM004:

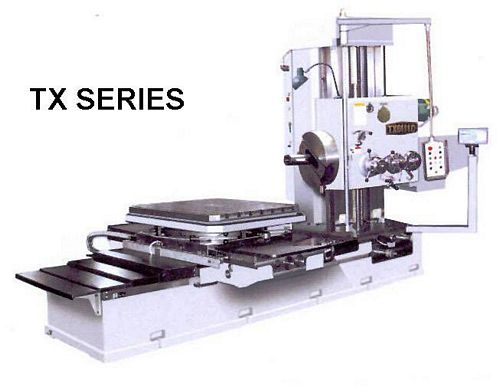

New, China TX6111T Horizontal Boring Machine

  • Spindle Diameter 110 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 9-1000 RPM
  • Power of Main Drive Motor 11 kW
  • Max. Drilling Capacity of Spindle 50 mm
  • Max. Boring Capacity of Spindle 300 mm
  • Speed of Facing Chuck 6-221 RPM
  • Travel of Facing Chuck Slide 170 mm
  • Max. Boring Capacity of Facing Chuck 600 mm
  • Table Size (L x W) 1200 x 1100 mm
  • Max. Load of Table 2500 kg
  • Transverse Travel of Table (X) 950 mm
  • Vertical Travel of Spindle Head (Y) 1100 mm
  • Longitudinal Travel of Table (Z) 1500 mm
  • Axial Travel of Spindle 600 mm
  • Feeds of Rates 1-1000 mm/rev (stepless)
  • DRO X,Y
  • Overall Dimensions: 4,900 mm (L) x 1,950 mm (W) x 2,950 mm (H)
  • Weight approximately 15 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
