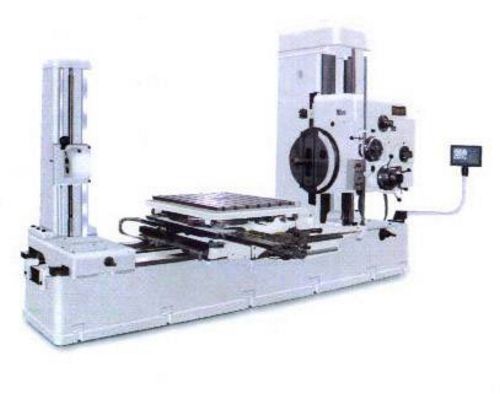

China TX619T Horizontal Boring Machine

NBHKM002:

New, China TX619T Horizontal Boring Machine

  • Spindle Diameter 90 mm
  • Spindle Taper Morse 5#
  • Spindle Speed 20-1000 RPM
  • Power of  Main Drive Motor 6.5/8.0 kW
  • Max. Drilling Capacity of Spindle 65 mm
  • Max .Boring Capacity of Spindle 240 mm
  • Speed of Facing Chuck 10-200 RPM(14step)
  • Travel of Facing Chuck Slide 170 mm
  • Max. Boring Capacity of Facing Chuck 450 mm
  • Table Size (L x W) 1000 x 80 mm
  • Max. Load of Table 2000 kg
  • Transverse Travel of Table (X) 850 mm
  • Vertical Travel of Spindle Head (Y) 755 mm
  • Longitudinal Travel of Table (Z) 1080 mm
  • Axial Travel of Spindle 600 mm
  • Feed Rates W: 0.05-16 mm/rev(18step): X,Y,Z: 0.025-8 mm/rev(18step)
  • DRO X, Y
  • Overall Dimensions: 5,075 mm (L) x 2,345 mm (W) x 2,730 mm (H)
  • Weight approximately 11 ton
Sales Enquiry Price Request

The above new machine is available from Zhongyang for IMMEDIATE sale. The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
