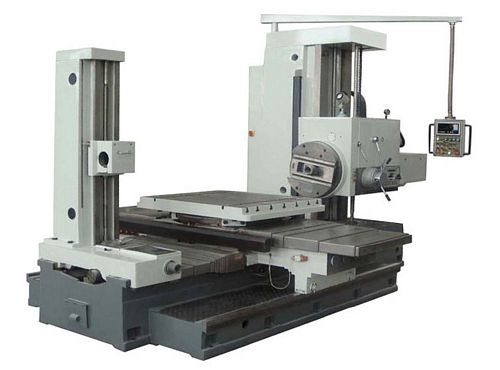

China TPX6113A/2 Horizontal Boring & Milling Machine


New, China TPX6113A/2 Horizontal Boring & Milling Machine

  • Spindle diameter 130mm
  • Table size 1800 x 1600mm
  • Max load on table 8000 kg
  • T-slot size 28mm; No. of T slot 9
  • X axis travel 2000mm
  • Y axis travel 2000mm
  • Z axis travel 1500mm
  • W axis 900mm
  • U axis travel (slide of facing head travel) 250mm
  • B axis angulation 360°
  • Min distance between spindle axis and table surface 0mm
  • Rapid travel (X/Y/Z) 2500 mm/min
  • Spindle taper Metric 80 (7:24 No50)
  • Max spindle torque 3136 N.m
  • Max axis resistance of spindle 31360 N
  • Spindle speeds 4-800 r/min, off 24
  • Max torque of facing head 4900 N.m
  • Facing head diameter 750mm
  • Speed range of facing head 2.5-125 r/min, off 18
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
