China TPX6113 Horizontal Boring & Milling Machine

NBHFT003:

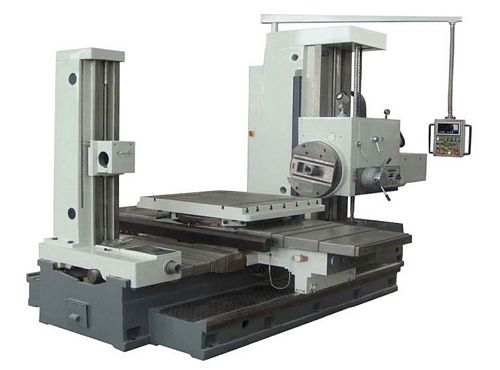

New, China TPX6113 Horizontal Boring & Milling Machine

  • China Horizontal Boring & Milling Machine
  • Model TPX6113
  • Spindle diameter 130mm
  • Table size 1600 x 1400mm
  • Max load on table 8000 kg
  • T-slot size 28mm; No. of T slot 9
  • X axis travel 1600mm
  • Y axis travel 1500mm
  • Z axis travel 1500mm
  • W axis 900mm
  • U axis travel (slide of facing head travel) 250mm
  • B axis angulation 360°
  • Min distance between spindle axis and table surface 0mm
  • Rapid travel (X/Y/Z) 2500 mm/min
  • Spindle taper Metric 80 (7:24 No50)
  • Max spindle torque 3136 N.m
  • Max axis resistance of spindle 31360 N
  • Spindle speeds 4-800 r/min, off 24
  • Max torque of facing head 4900 N.m
  • Facing head diameter 750mm
  • Speed range of facing head 2.5-125 r/min, off 18
  • Range of axes speed per spindle surface 0.05-8 / 0.01-2 mm/rev
  • Precision of measurement system reading (X/Y/Z) 0.005mm
  • B-axis measurement system reading precision 0.001°
  • Main motor 15 kw
  • Overall Dimensions: 6,995 mm (L) x 3,730 mm (W) x 3,535 mm (H)
  • Weight approximately 26 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
