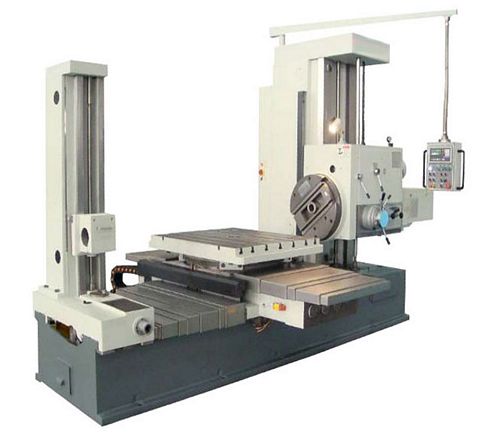

China TPX6111A Horizontal Boring & Milling Machine

NBHFT002:

New, China TPX6111A Horizontal Boring & Milling Machine

  • China Horizontal Boring & Milling Machine
  • Model TPX6111A
  • Spindle diameter 110mm
  • Table size 1140 x 1000mm
  • Max load on table 2500 kg
  • T-slot size 22mm; No. of T slot 9
  • X axis travel 1350mm
  • Y axis travel 1000mm
  • Z axis travel 1000mm
  • W axis 600mm
  • U axis travel (slide of facing head travel) 180mm
  • B axis angulation 360°
  • Min distance between spindle axis and table surface 0mm
  • Rapid travel (X/Y/Z) 2500 mm/min
  • Spindle taper Morse No. 6 (7:24 No50)
  • Max spindle torque 1225 N.m
  • Max axis resistance of spindle 12250 N
  • Spindle speeds 8-1000 r/min, off 22
  • Max torque of facing head 1960 N.m
  • Facing head diameter 600mm
  • Speed range of facing head 4-200 r/min, off 18
  • Range of axes speed per spindle surface 0.04-6 / 0.01-1.88 mm/rev
  • Precision of measurement system reading (X/Y/Z) 0.005mm
  • B-axis measurement system reading precision 0.001°
  • Main motor 7.5 kw
  • Overall Dimensions: 4,910 mm (L) x 2,900 mm (W) x 2,850 mm (H)
  • Weight approximately 14 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mill, horizontal boring machine, hbm), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
