Zhongyang Sams Horizontal Borer


Taiwan HB-1800 Horizontal Borer

NBHES001:

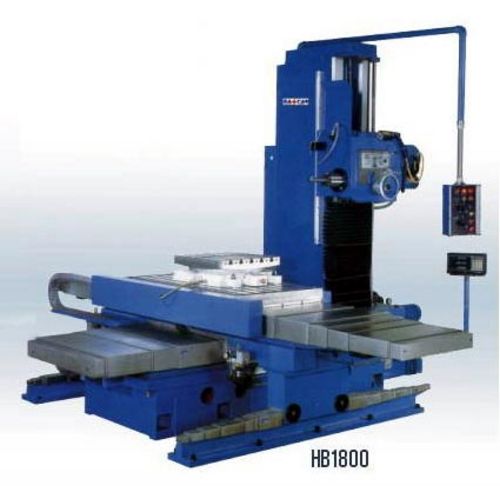

New, Taiwan HB-1800 Horizontal Borer

  • Working Table 1500x800 mm
  • X/Y/Z Travels: 1800 x 1400 x 1200 mm
  • Max Load 2000 kg
  • C/w 3-Axis D.R.O.
  • Working Table Surface Height 950 mm
  • Spindle Nose NT 50
  • Spindle Speeds 45-1500 RPM
  • Distance Between Spindle Center to Working Table 0-1400 mm
  • X, Y, Z Feed Rates 23-730 mm/min, 12 steps
  • Z-Axis Boring Speed 0.023-0.73 mm/rev, 12 steps
  • X, Y, Z Rapid Speed 2400 mm/min
  • Main Motor 7.5 kW x 4P
  • Spindle Cycle Lubrication Motor 0.2 kW x 4P
  • Centralized Lubrication Motor 25 W
  • Transmission Motor 1.2 kW x 4P
  • Coolant Motor 0.1 kW x 4P
  • Overall Dimensions: 4,300 mm (L) x 4,400 mm (W)
  • Weight approximately 10 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used horizontal borer (horizontal borer, horizontal boring mills, horizontal boring machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
