Zhongyang Sams Floor Boring Machine

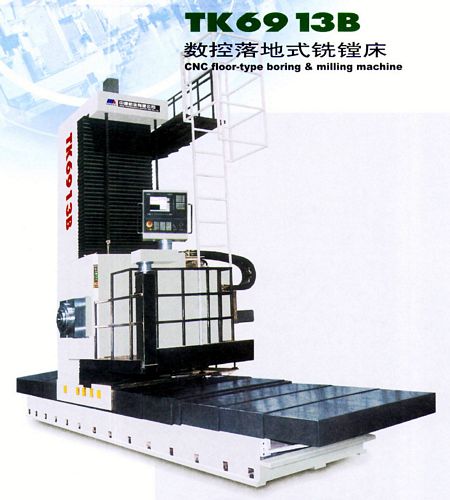

China TK6913B 130mm CNC Floor Boring & Milling Machine, Y=3000mm

NBFSY003:

New, China CNC Floor Boring & Milling Machine

  • Spindle Dia 130 mm
  • Column Long Traverse 4000 mm
  • Vertical Traverse 3000 mm
  • Spindle Traverse 700 mm
  • Ram Traverse 700 mm
  • Spindle Taper ISO 50
  • Spindle Speeds 10-1500 RPM
  • Power of Main Motor 37/51 kW
  • Max Spindle Torque 2500 Nm
  • Cutting Feed: X & Y = 1-6000 mm/min, Z & W = 1-1300 mm/min
  • Rapid Traverse X & Y = 6 m/min, Z & W = 3 m/min
  • Positioning Accuracy X & Y = 0.026/1000 mm, Z & W = 0.03 mm over full length
  • Repeatability 0.013/1000 mm
  • Total Power 85 kVA
  • CNC System Siemens 840DE
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used floor boring machine (floor borer, floor boring mill, floor type horizontal boring mill, floor type horizontal boring machine, floor type hbm, ram borer, ram type boring machine, floor boring machine, traveling column boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
