Zhongyang Sams Floor Boring Machine


China TK6913 Floor Type Boring Machine

NBFKM012:

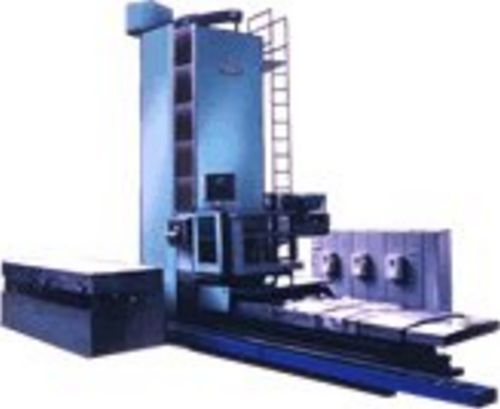

New, China TK6913 Floor Type Boring Machine

  • Dia. of Boring Spindle 130 mm
  • Dia. of Milling Spindle 221.44 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 6 - 1500 RPM
  • Power of Spindle Motor 37/51 kW
  • Max. Torque of Boring Spindle 3500 N.m
  • Max.  Axial Resisting Power 35000 N
  • Max. Torque of Milling Spindle 5000 N.m
  • Ram Size (L x W) 420 x 480 mm
  • Cross Travel of Column (X) 6000 mm
  • Vertical Travel of Spindle Head (Y) 2000 mm
  • Ram Travel (Z) 800 mm
  • Axial Travel of Spindle (W) 800 mm
  • Power of Feed Motors X: 8.7, Y: 8.7, Z: 4.7, W: 4.7 kW
  • Rapid Traverse X: 8000, Y: 8000, Z: 6000, W: 4000 mm/min
  • Repeatability X,Y,Z,W 0.025 mm
  • CNC System FANUC 18i
  • Overall Dimensions: 11,000 mm (L) x 3,000 mm (W) x 6,200 mm (H)
  • Weight approximately 65 ton
Sales Enquiry Price Request

The above new machine is available from Zhongyang for IMMEDIATE sale. The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used floor boring machine (floor borer, floor boring mill, floor type horizontal boring mill, floor type horizontal boring machine, floor type hbm, ram borer, ram type boring machine, floor boring machine, traveling column boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
