Zhongyang Sams Floor Boring Machine


China TJK6916 Floor Type Boring Machine

NBFKM005:

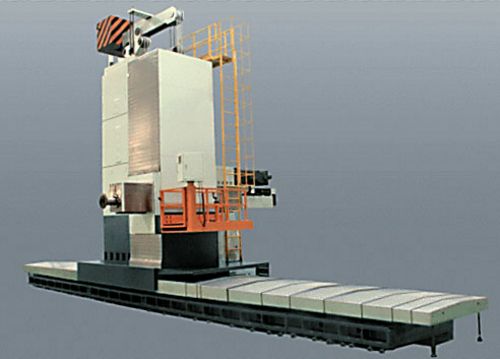

New, China TJK6916 Floor Type Boring Machine

  • Dia. of Boring Spindle 160 mm
  • Dia. of Milling Spindle 260 mm
  • Spindle Taper ISO 50#
  • Spindle Speed 2 - 950 RPM
  • Power of Spindle Motor 55 kW
  • Max. Torque of Boring Spindle 5000 N.m
  • Max. Axial Resisting Power 50000 N
  • Max. Torque of Milling Spindle 11400 N.m
  • Ram Size (L x W) 480 x 580 mm
  • Cross Travel of Column (X) 8000 mm
  • Vertical Travel of Spindle Head (Y) 3000 mm
  • Ram Travel (Z) 1100 mm
  • Axial Travel of Spindle (W) 900 mm
  • Power of Feed Motors X: 12.5, Y: 9.6, Z: 9.6, W: 9.6 kW
  • Rapid Traverse X: 4000, Y: 3500, Z: 2000, W: 2000 mm/min
  • Repeatability X,Y,Z,W +/- 0.01/1000 mm
  • CNC System FAGOR 8055M
  • Overall Dimensions: 14,360 mm (L) x 6,375 mm (W) x 7,480 mm (H)
  • Weight approximately 113 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used floor boring machine (floor borer, floor boring mill, floor type horizontal boring mill, floor type horizontal boring machine, floor type hbm, ram borer, ram type boring machine, floor boring machine, traveling column boring mill), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
