Zhongyang Sams Cylinder Borer


China T250A Vertical Fine Boring Machine

NBCHG012:

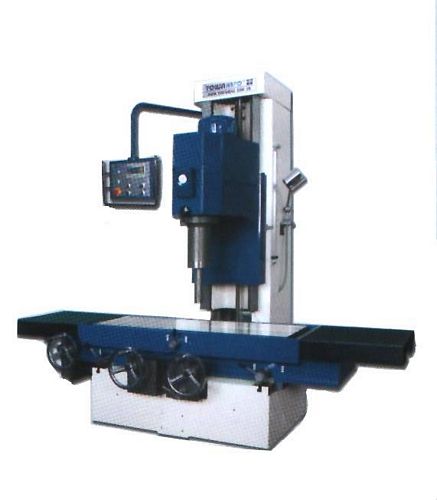

New, China T250A Vertical Fine Boring Machine

  • Max. Boring Dia. 250mm
  • Max. Boring Depth 500mm
  • Max. Drilling & Reaming Dia. 30mm
  • Spindle Speed 120-860 r/min
  • Feeding of the Spindle 14-900 mm/min
  • Rapid Moving Speed of The Spindle 1000mm/min
  • Spindle Travel 700 mm
  • Distance Between Spindle End Face and Table 0-700mm
  • Max. Longitudinal Travel of the Working Table 1500mm
  • Max. Cross Travel Of The Working Table 200mm
  • Working Table Size 500 x 1500mm
  • Quantity of "T"  Slot   5
  • Main Motor Power 5.5 kW
  • Overall Dimensions: 2,600 mm (L) x 1,630 mm (W) x 2,300 mm (H)
  • Weight approximately 3.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylinder borer (cylinder boring machine, cylinder borer, cylinder boring milling machine, cylinder block boring machine, cylinder block boring and milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
