Zhongyang Sams Cylinder Borer


China T716A Vertical Fine Boring Machine

NBCHG004:

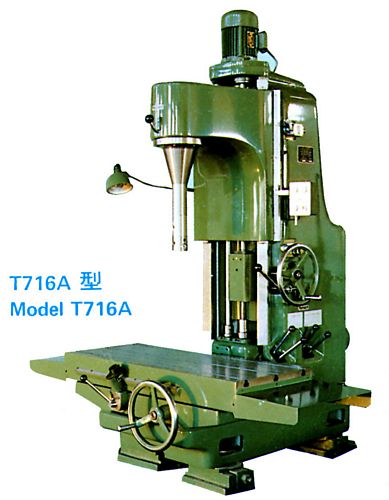

New, China T716A Vertical Fine Boring Machine

  • China T716A Vertical Fine Boring Machine
  • Max Boring Diameter 165 mm
  • Max Boring Depth 410 mm
  • Spindle Max Travel 550 mm
  • Spindle Speeds 190-600 rpm, off 6
  • Spindle Feed Rates 0.05-0.2 mm/rev, off 4
  • Table Size 1200x500 mm
  • Max Longitudinal Travel of Table 700 mm
  • Main Motor 3 kW @ 1430 rpm
  • Rapid Traverse Motor 1.1 kW @1410 kW
  • Overall Dimensions: 1,860 mm (L) x 1,500 mm (W) x 2,225 mm (H)
  • Weight approximately 2.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylinder borer (cylinder boring machine, cylinder borer, cylinder boring milling machine, cylinder block boring machine, cylinder block boring and milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
