Zhongyang Sams Cylinder Borer

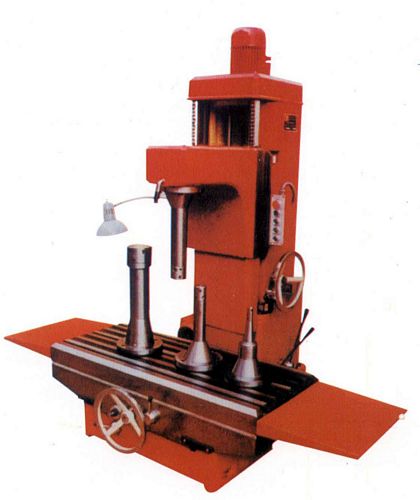

China T8018B Cylinder Boring Machine

NBCEA001:

New, China Cylinder Boring Machine Model T8018B

  • Range of boring diameter 30 - 180 mm
  • Maximum boring depth 450mm
  • Rotational speed of spindle 175,230,300,350,460,600 r/min
  • Spindle feed 0.05, 0.10, 0.20 mm/r
  • Spindle travel 500mm
  • High rising speed of spindle 2.65 m/min
  • Distance for the central line of the spindle to body 320mm
  • Table size 1200mm x 500mm
  • Table travel crosswise 100mm
  • Table travel lengthwise 800mm
  • Main motor 2.4 / 3 kW
  • Motor for quick-moving 0.75 kW
  • Overall dimensions: 2000mm (L) x 1235mm (W) x 1920mm (H)
  • Net weight 2000 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cylinder borer (cylinder boring machine, cylinder borer, cylinder boring milling machine, cylinder block boring machine, cylinder block boring and milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
