Taiwan WA-460HA Double Column Automatic Bandsaw

NABES004:

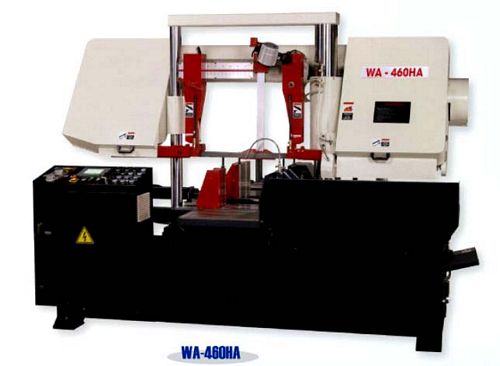

New, Taiwan WA-460HA Double Column Automatic Bandsaw

  • Cutting capacity: Round 460mm                                   Rectangle 480 x 460 mm
  • Blade size 41 x 1.3 x 5450 mm
  • Blade speed (50 Hz)16.7 x 70.8 m/min
  • Table height 810mm
  • Feeding stroke 510mm
  • Min residual work length 85mm
  • Min cut off length: over 8mm
  • Min no. material detecting 25mm
  • Bundle cutting (W x H): 210 x 130 mm - 360 x 230 mm
  • Non CE mark
  • NC type
  • Blade motor 7.5 HP (5.7 kW)
  • Hydraulic motor 2 HP (1.5 kW)
  • Coolant motor 1/4 HP (0.18 kW)
  • Hydraulic tank 88 liters
  • Coolant tank 117 liters
  • Overall Dimensions: 2,870 mm (L) x 2,300 mm (W) x 2,200 mm (H)
  • Weight approximately 2.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used bandsaw (bandsaw machine, band saw machine, metal band saw machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
