Zhongyang Sams Vertical Milling Machine


Stankoimport 98" x 41" Vertical Miller

More Photos...
ME14549 me14549_b.jpg me14549_c.jpg

ME14549:

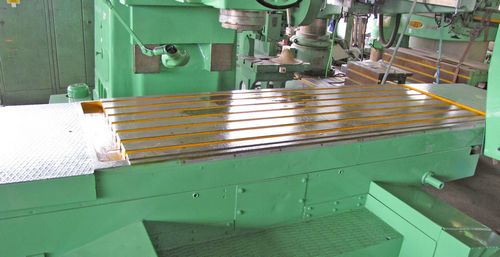

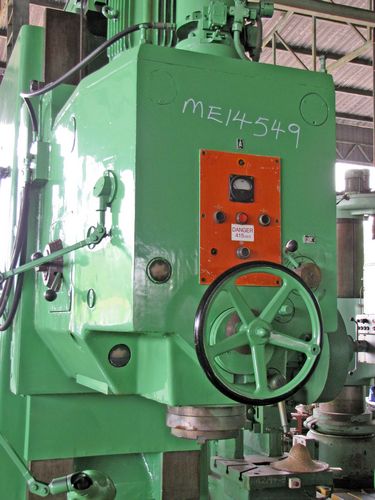

Used Stankoimport 98" x 41" Vertical Miller

  • Table size: 98.1/2" x 41" with 7 tee slots
  • Left to right movement of table: 76", hand or power operated
  • In & out movement of table: 36", hand or power operated
  • Head rise & fall: 36" by power
  • Spindle speeds: 18 off, 25-1250 rpm
  • Feed rate 20 to 1000 mm/min
  • Motorised: 415/3/50 AC 22 kW
  • Spindle taper in vertical head: 60 Int
  • Power draw bar (power locking of milling head)
  • Fitted with: rapid traverse, push button starter, isolator switch
  • Supplied with: coolant, push button pendant control
  • Length: 14’ (4.27m). Width: 11’10" (3.61m). Height: 15’ (4.57m)
  • Nett weight approx: 25 tons (25,401 kgs)
  • Overall Dimensions: 4,270 mm (L) x 3,610 mm (W) x 4,570 mm (H)
  • Weight approximately 25 ton

Video for this machine is available as follows:
Video for ME14549

Sales Enquiry Price Request

We are the supplier, seller and owner of the above used (second hand) machine.
The machine is for sale EX-STOCK and is currently located in our warehouse in Ipoh, Malaysia.



If you require additional information on this machine or on any other new or used vertical milling machine (vertical miller, vertical milling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
