Zhongyang Sams Thread Rolling Machine


Seny Thread Roller, Model D-75-B

More Photos...
HR2211-5 hr2211-5_b.jpg hr2211-5_d.jpg hr2211-5_rolls_1a.jpg hr2211-5_rolls_1a.jpg

HR2211-5:

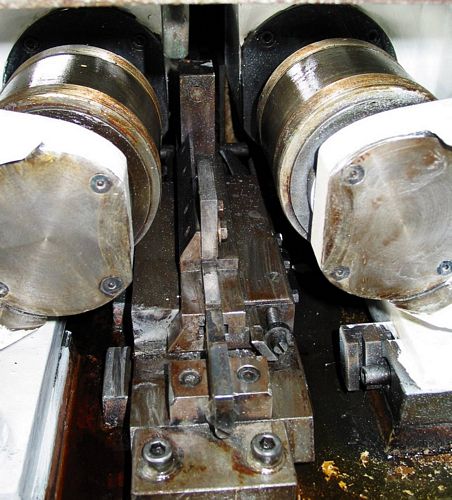

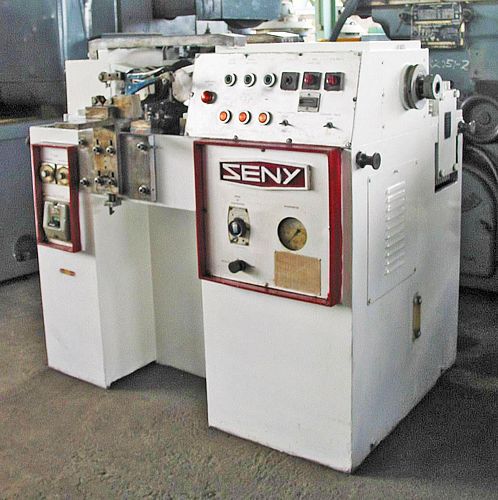

Used Seny Thread Roller, Model D-75-B

  • Capacity 3-75mm
  • Variable Rolling Pressure 0.5-20 Tons
  • Max. Thread Length by Plunge In 160mm
  • Max. Length by Through Feed 2000mm
  • Speed range : 24 to 114 off 8 step
  • Tool diameter: 145mm to 200mm dia.
  • Roll spindle: 54mm diameter
  • Distance between shafts: 130 to 200 mm.

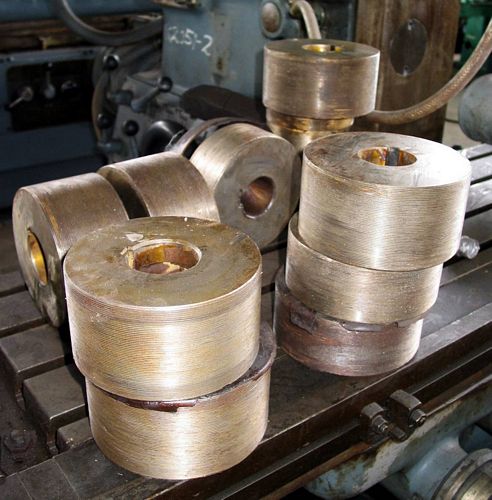

  • Equipped with 9 Sets of Rolls:
  • 3 sets M18 x 1.5mm/thread (150mm dia. X 80mm width);
  • 1 set M50 x 1.5mm/thread (147mm dia. X 60mm width)
  • 1 set M50 x 1.5mm/thread (150mm dia x 80mm width)
  • 1 set M32 x 1.5mm/thread (155mm dia x 60mm width)
  • 1 set M24 x 3.00mm/thread (157mm dia. X 60mm width)
  • 2 Set 1.5mm/Thread for Stud
  • Overall Dimensions: 1,880 mm (L) x 991 mm (W) x 1,270 mm (H)
  • Weight approximately 1.6 ton

Video for this machine is available as follows:
Video for HR2211-5

Sales Enquiry Price Request

We are the supplier, seller and owner of the above used (second hand) machine.
The machine is for sale EX-STOCK and is currently located in our warehouse in Ipoh, Malaysia.



If you require additional information on this machine or on any other new or used thread rolling machine (thread machine, power threading machine, thread roller machine, thread rolling machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
